Mandocello Conversion
Pictures and text following my efforts to convert a Guitar into a MandoCello
Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 (0 votes)
Avatar
Raywells
Members

Regulars
December 20, 2013 - 7:53 pm
Member Since: October 2, 2012
Forum Posts: 128
sp_UserOfflineSmall Offline

Ray here;

I have bought a regular and inexpensive mandolin because I thought I might to have an instrument to strum and pick that tunes like a violin. In the short time I have had the mandolin I have learned that a mandola is the viola of the mandolin family and that there is a cello equivalent in the mandocello. Since I have tended toward lower registered versions of violin and viola it is not surprising that I have become intrigued by the mandocello ..... so I am converting a Guitar into a mandocello, 8 plucked strings tuning A D G and C like a cello. Here is a picture of the work so far ...Mandocello2B.jpgImage Enlarger next picture will show all the holes filled....

sp_PlupAttachments Attachments
Avatar
StoneDog
Members

Regulars
December 20, 2013 - 9:19 pm
Member Since: January 14, 2013
Forum Posts: 885
sp_UserOfflineSmall Offline

SWEET!!!!!!! > can't wait to hear it.

Avatar
Raywells
Members

Regulars
December 21, 2013 - 8:49 pm
Member Since: October 2, 2012
Forum Posts: 128
sp_UserOfflineSmall Offline

MC2B-1221.jpgImage EnlargerMC2B-2112B.jpgImage Enlarger

I'M Back ... a couple of pictures to show some progress, Have narrowed the neck by about twice the thickness of the binding on each side, Filled all the tuner and screw holes in the head stock ready for re-drilling. I plan to remove all the mahogany lacquer from the base of the neck to the end of the headstock. I will thin the headstock to allow a birch veneer both sides of the headstock then a dark stain on the bare wood and probably a coat of varithane. Still shopping for a 12 string acoustic bridge and saddle (frugality rules) and a 1.5 inch nut. Probably a big wait now till after Christmas. Merry Christmas BTW.

Ray



sp_PlupAttachments Attachments
Avatar
Fiddlerman
Fort Lauderdale
December 21, 2013 - 11:02 pm
Member Since: September 26, 2010
Forum Posts: 11702

"The richest person is not the one who has the most,
but the one who needs the least."

Avatar
Raywells
Members

Regulars
December 22, 2013 - 7:48 pm
Member Since: October 2, 2012
Forum Posts: 128
sp_UserOfflineSmall Offline

Hello Pierre; Thanks for looking in. Yes they are my pictures and I dont know why they didn't post into the text but they are available in the list of attachments and come up when clicked. I will check my process when I post next set of pictures.



Ray

Avatar
Fiddlerman
Fort Lauderdale
December 24, 2013 - 11:15 pm
Member Since: September 26, 2010
Forum Posts: 11702

I agree that the upload pictures process is a little strange here. Hopefully something that can be improved on but let me know if you can't figure out a way to get it to work for you and I'll investigate a bit more. :-)

"The richest person is not the one who has the most,
but the one who needs the least."

Avatar
1stimestar
Members

Regulars
December 30, 2013 - 4:56 pm
Member Since: August 28, 2013
Forum Posts: 814
sp_UserOfflineSmall Offline

Try making them smaller.



Opportunity is often missed because it wears suspenders and looks like hard work.



Alaska, the Madness; Bloggity Stories of the North Country

Avatar
Raywells
Members

Regulars
January 1, 2014 - 10:45 pm
Member Since: October 2, 2012
Forum Posts: 128
sp_UserOfflineSmall Offline

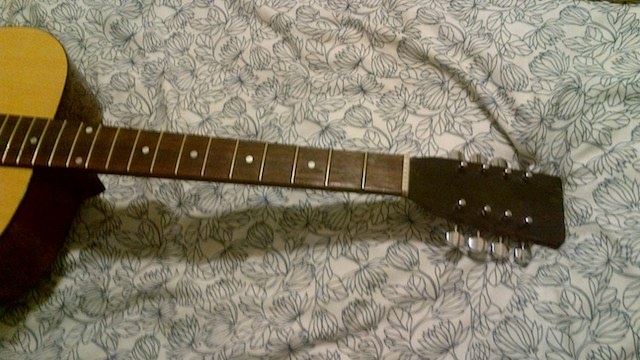

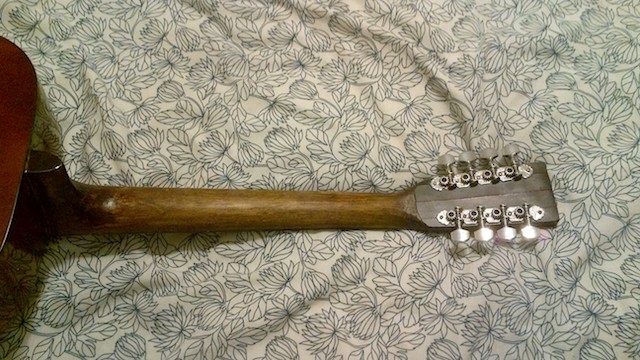

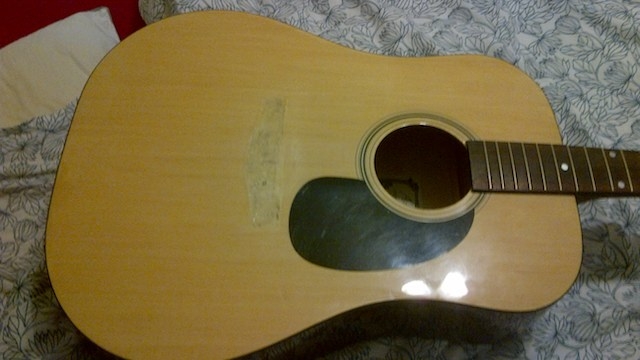

Taking advice from 1stimestar I have made the pictures smaller. Tuners have been added, black melamine edging covers headstock, nut has preliminary spacings and we just await arrival of Tailpiece, mandolin bridge and mandocello strings

MC2Bnut-headstock.jpgImage EnlargerMC2Bnut-headstock-1.jpgImage EnlargerMC2B-ready-for-bridge-and-tailpiece.jpgImage EnlargerMC2B-mandotuners.jpgImage Enlarger

Avatar
Raywells
Members

Regulars
January 7, 2014 - 11:52 am
Member Since: October 2, 2012
Forum Posts: 128
sp_UserOfflineSmall Offline

Tuesday 7 Jan 2014

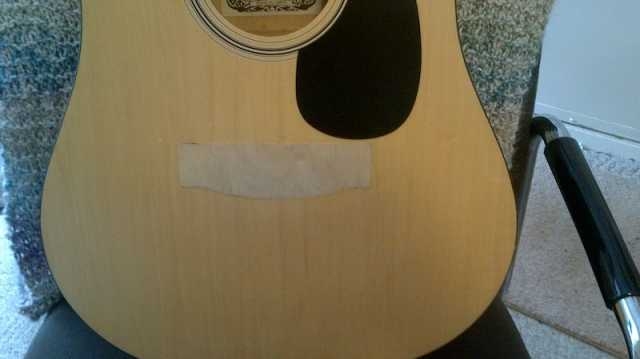

Decided to inlay some birch veneer. Still looks repaired but perhaps not ugly.

The insert stands fingernail proud of the rest of the top but I don't have skills to get it closer without messing up the rest of the top so have left it a bit high.

And have applied a mist coat of satin polyurethane to the top of the instrument.

Hides many sins.

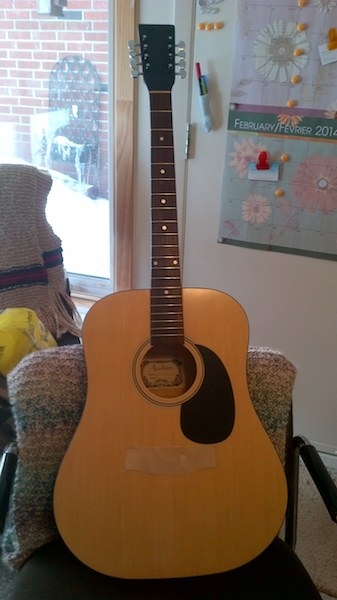

MC2B-needs-parts.jpgbirch-inlay.jpgImage Enlarger So now we wait for Tailpiece, Bridge and Strings to arrive

Ray

sp_PlupAttachments Attachments
Avatar
Raywells
Members

Regulars
March 15, 2014 - 4:01 pm
Member Since: October 2, 2012
Forum Posts: 128
sp_UserOfflineSmall Offline
10sp_Permalink sp_Print
0

I am back with a picture of my mandofamily. You can see my mandolin and the big fella is the Guitar to Mandocello conversion as 15 March.mandofam.jpgI have fitted scallop shell tailpieces to both instruments to solve the problem of covers coming off. A lot of difference horsing the big fella around compared to the Mandolin. Mandolin is almost casual to play but the Mcello requires more deliberate action or probably I am just not used to it.

Ray

sp_PlupAttachments Attachments
Avatar
Ferret
Byron Bay Australia
Members

Regulars
March 16, 2014 - 4:57 pm
Member Since: April 22, 2012
Forum Posts: 1575
sp_UserOfflineSmall Offline
11sp_Permalink sp_Print
0

Ray

The family are looking good. The scallop shell looks great.

You'll get used to handling the 'big fella' in no time :)

Seen it all. Done it all. Can't remember most of dunno ..... What was I saying???? facepalm
