some pics of my violin's parts
Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 (0 votes)
Avatar
ozmous
Honorary advisor
Members

Regulars
December 10, 2012 - 11:14 am
Member Since: July 8, 2012
Forum Posts: 328
sp_UserOfflineSmall Offline

ok...so i changed some stuff of my violin, I'm gonna show you guys some of it, here they are:

Bridge -i was experimenting with bridges to make different sounds, so here are my experimental bridges:

my very first bridge that came with my violin:Image Enlarger

























my second bridge, which i shaped and carved:Image Enlarger























my third bridge, which i call "the devil", i carved/shaped it, and then drew those figures, since i noticed that original stradivarius bridges have decorations on themImage Enlarger































and my fourth bridge, which i currently use and the most perfect bridge i have carved/shaped, i designed it the same shape with Paganini's bridge:Image Enlarger

Image Enlarger













































Strings -ahh...the strings, the strings I'm currently using was given by an awesome friend! it is the "Overture Ultra"...well, except for the A string, as you can clearly see, the Overture's A broke when i was changing the bridge...so i am now using  cheap A, it has, as you can see, almost the same diametre as the E:

































Chinrest -I've added some cork to dd some height of the chinrest, since i don't use and i don't like shoulderrests:Image Enlarger



















and finally...the Label -I, once again, changed the label, as you can see, it says "OZMOUS FEROUS"(w/c is my latinized nickname) with the caption "proprietario del violino"(which means, owner of the violin):Image Enlarger

cheers! - ⁰ℨ

Avatar
Fiddlestix
Michigan, USA
King
Members

Regulars
December 10, 2012 - 12:03 pm
Member Since: January 21, 2012
Forum Posts: 2637
sp_UserOfflineSmall Offline

Keith, you've cut the string groove's much too deep.

Avatar
Kevin M.
Nicholson, Pa
Members

Regulars
December 10, 2012 - 1:21 pm
Member Since: September 10, 2011
Forum Posts: 1957
sp_UserOfflineSmall Offline

I agree with Fiddlestix, the grooves should only be half the thickness of the string.



I'm glad to see you trying out new things on your violin.  Next time try to thin the entire bridge instead of having sharp angles coming to the edge of the bridge.  The idea is to get the entire bridge thin enough to transmit the string vibrations without breaking under the strain of the string.  With the shoulder rest try gluing wood under the feet of it instead of more cork.  The cork will shrink down and you might find the chinrest becoming increasingly loose.



I tell you these things not to discourage you but to encourage you to continue.

Avatar
ozmous
Honorary advisor
Members

Regulars
December 10, 2012 - 10:16 pm
Member Since: July 8, 2012
Forum Posts: 328
sp_UserOfflineSmall Offline

@fidlestix, aye, it is too deep...but i did that for a reason, if i did not, the strings would be too high...that's why i call them "experimental"

@kevin, it is actually very thin, to the point that i stopped sanding them because they might break due to tension and the thin part , as for the shoulder rest, i did glued those cork...i didn't use regular wood like you said, because it makes a dent in the violin's wood, since cork is soft, i used it. actually, the cork is strong ,it doesn't shrink, I've been using it for the past months. and for my experiment, this bridge is the best sounding experimental bridge I've done, better than my older bridges

cheers amuse

cheers! - ⁰ℨ

Avatar
Barry
Members

Regulars
December 10, 2012 - 10:46 pm
Member Since: June 30, 2011
Forum Posts: 2661
sp_UserOfflineSmall Offline

if the strings are too high you need to cut the bridge down more Oz. These guys are right, the strings need to sit on top the bridge,not down in it.

keep experimenting, you'll get it right.

There is no shame in playing twinkle, youre playing Mozart

Avatar
ratvn
Kent, Washington USA
Honorary tenured advisor
Members

Regulars
December 10, 2012 - 11:14 pm
Member Since: October 14, 2012
Forum Posts: 550
sp_UserOfflineSmall Offline

Nice violin top plate you got there. It looks like Carpathian spruce.

From your pictures, I agree with Fiddlestix and Kevin M, deep groove and thick bridge.

As for the grooves (it would dampen string vibration/sound) you can remove excess wood from the top, just a few mm curving then all strings would sit 1/3-1/2 diameter.

Give us a side view of your bridge. It looks thick though, which will dampen your violin sound a lot. Should be close to a straight taper from the top edge, which is about 1.2 mm, to about 4.2 mm bottom, unless you're trying to tune it away from bright/hash E/D strings, but then it will remove your lower string power/volume. That is why a strong/quality/aging maple is used for violin bridge so it can withstand string tension/pressure.

Avatar
cdennyb
King for a Day, Peasant for many
Members

Regulars
December 11, 2012 - 3:24 am
Member Since: February 13, 2012
Forum Posts: 1774
sp_UserOfflineSmall Offline

Keep in mind the 42 mm radius across the top of the bridge. It's necessary so you can cross from string to string easily without inadvertant double stops. The G string side is set a little higher off the fingerboard than the E string side is so use those two tick marks as beginning and ending spots for the radius.

Good experimenting, a few traces analyzing the sound from those would be very helpful for you to determine which way to go and just how far.thumbs-up

"If you practice with your hands you must practice all day. Practice with your mind and you can accomplish the same amount in minutes." Nathan Milstein

Avatar
DanielB
Regulars

Members
December 11, 2012 - 3:32 am
Member Since: May 4, 2012
Forum Posts: 2379
sp_UserOfflineSmall Offline

I like the artwork on the bridge, Oz.   I have thought of doing that myself, since seeing it on some antique violins.  "The Devil" bridge came out looking very cool.

thumbs-up

I also thought about trying a bridge modelled after Paganini's, but I haven't seen any blanks available without the "heart".  It will be a project for another time, maybe.  How do you like the sound you get with your version of Paganini's bridge?  From a player point of view, how would you say it is different?

A very nice looking violin, Oz.

"This young wine may have a lot of tannins now, but in 5 or 10 years it is going to be spectacular, despite the fact that right now it tastes like crude oil. You know this is how it is supposed to taste at this stage of development." ~ Itzhak Perlman

Avatar
ozmous
Honorary advisor
Members

Regulars
December 11, 2012 - 4:27 am
Member Since: July 8, 2012
Forum Posts: 328
sp_UserOfflineSmall Offline

ok guys, shaved a little of the top, here is a picture of the top, and I've also photographed the side so you can see the thickness:

Image Enlarger

Image Enlarger

@ratvn,i dunno if you can see that it is very thin, but it is, making it more thin will make it warp....thickness of foot : 0.3 cm or 3 mm...a regular violin bridge should be 4.4 mm, and thickness of top: 0.1 cm or 1 mm ......less than that and the tension will warp the wood. this is the most perfect thinnest i can do, it has great sounds too, it doubles the vibration of the whole body, when i play the the bass side, the middle of the top and back vibrates well, plus the whole body, and when i play the treble side, the whole sides of the violin's top and back vibrates loudly, creates booming sounds and fast reaction, perfect acoustics for me amuse

@denny, ya amuse, the diametre of my bridge is perfect, i can do doubles stops, and yes, the G is higher and E is lower...

cheers! - ⁰ℨ

Avatar
ozmous
Honorary advisor
Members

Regulars
December 11, 2012 - 4:51 am
Member Since: July 8, 2012
Forum Posts: 328
sp_UserOfflineSmall Offline

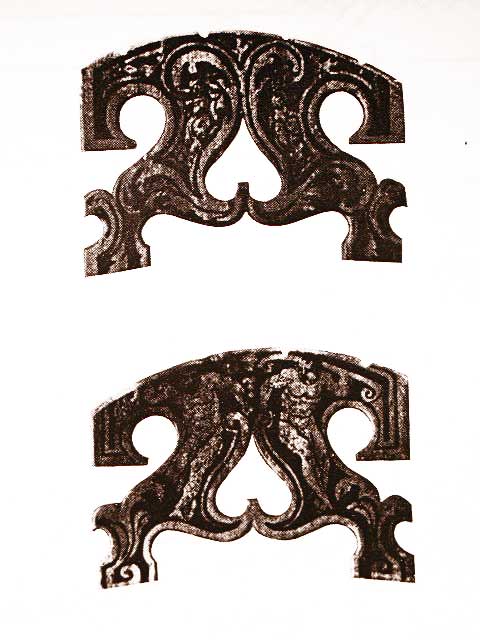

@Daniel, thanks smile, I've got the inspiration from Stradivarius original baroque bridges:

Image Enlarger





































oh, and as for the Paganini bridge, there's one online:

http://www.violins.ca/supplies.....roque.html

and  a picture:



and as for my review for my "Paganini styled" bridge, it actually sounds good, the bass side is dark and loud, and the treble is a bit sharp, it is not really that different from other bridge....well, besides the height, it's kinda tall on the top and short on the foot...that's all for now amuse

cheers! - ⁰ℨ

Avatar
ratvn
Kent, Washington USA
Honorary tenured advisor
Members

Regulars
December 11, 2012 - 5:54 am
Member Since: October 14, 2012
Forum Posts: 550
sp_UserOfflineSmall Offline
11sp_Permalink sp_Print
0

OK, ozmous, that looks much better than your previous one.

And you do have it very thin though, from your measurements, so bridge total mass is probably about right.

If it sounds good to you (from the way you described strings vibration), then that is perfect. I would not do any modification to that bridge thickness. You did a great job, ozmous (I spent a few months experiment with quite a number of them before I got one tuning in fairly good. If I do more tuning I start with a blank one, just to save the best one I got for comparison, and as each violin is different, due to material/construction etc., bridge tuning is not really the same, most of the times).

One suggestion/observation I like to present, may not be applicable to yours particularly, but hey, this is what I know and I like to share. You know that violin bridge function is to vibrate/transmit sound/frequency to the body through rocking motion pivoting one side at the sound post and vibrate the whole top plate with its bass bar along its length, and to dampen/filter unwanted frequency/harshness sound, so the balance of bridge thickness at various places, and thinness at others are desirable.

Violin bridge has a narrow section at the point where its heart and side wings met (about center area on a regular design), and that is the most flexible area where bridge vibration/rocking motion occurs. For maximum vibration, I usually keep it as thin and narrow as possible, so from the top to that point it's a straight thin taper. From there to the feet, it would be less for supporting/sound transmission and as a whole function, bridge mass is proportion to sound dampening.

It's just my personal opinion/observation. You may have better way of doing it which, of course, I like to learn from.

Avatar
ozmous
Honorary advisor
Members

Regulars
December 11, 2012 - 6:38 am
Member Since: July 8, 2012
Forum Posts: 328
sp_UserOfflineSmall Offline

thanks Ratvn amuse, btw, I've read that the bridge is shaped to emphasize the "singer's formant"...and also that all violin bridges shouldn't really be thin...the bridge's thickness only depends on the violin per se.

oh, and i also saw this asymmetric design:

http://www.violinbridgeworks.n.....heNews.htm

cheers! - ⁰ℨ

Avatar
RosinedUp
Honorary tenured advisor
Members

Regulars
December 11, 2012 - 1:38 pm
Member Since: September 7, 2012
Forum Posts: 985
sp_UserOfflineSmall Offline
13sp_Permalink sp_Print
0

ozmous said
oh, and i also saw this asymmetric design:

http://www.violinbridgeworks.n.....heNews.htm

Some radical designs there.  I have no problem with that.  But he has earned my hostility by claiming patent monopoly on using asymmetry in bridges.

Avatar
Fiddlerman
Fort Lauderdale
December 12, 2012 - 8:42 am
Member Since: September 26, 2010
Forum Posts: 11717
14sp_Permalink sp_Print
0

Interesting bridges. Would be really cool to have a test (and sound analysis) with a bunch of these crazy bridges. I'm was so surprised that he was able to get a patent that I had to see it for myself.

United States Patent 6,803,510
Van Dusen October 12, 2004

Seems wrong somehow. I think he should be able to put a patent on his own designs but not asymmetrical in general.

"The richest person is not the one who has the most,
but the one who needs the least."

Avatar
DanielB
Regulars

Members
December 12, 2012 - 9:14 am
Member Since: May 4, 2012
Forum Posts: 2379
sp_UserOfflineSmall Offline
15sp_Permalink sp_Print
0

Actually, if you read through the document and check the diagrams, the patent is for a very specific design of asymmetrical bridge, and wouldn't cover just any bridge that is not symmetrical.  It is described in a fair bit of detail in the patent document along with the reasons for each part being shaped the way they are.

There can be a lot of patents for items called "table lamp", but nobody would have a patent on the concept of a lamp that goes on a table.

It looks like he put a lot of work into developing a very specific bridge that he feels works better and doesn't happen to be symmetrical.  Sure looks interesting.  And this patent would protect him from someone just copying his work or making a close imitation, but it does not state anywhere that he owns a patent to *all* bridges that aren't symmetrical.  Every feature of one specific bridge is explained in detail with reference to the numbered diagrams.

"This young wine may have a lot of tannins now, but in 5 or 10 years it is going to be spectacular, despite the fact that right now it tastes like crude oil. You know this is how it is supposed to taste at this stage of development." ~ Itzhak Perlman
