Violin nut repair.
Raising a low nut without replacing it.
Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 (0 votes)
Avatar
Guido
Estonia

Member
August 5, 2016 - 5:16 pm
Member Since: November 9, 2015
Forum Posts: 19
sp_UserOfflineSmall Offline

So I thought I'd post here how I raised the nut on my violin a while back. Maybe someone will even find it useful. Who knows. The problem was that the E string groove was too low and the open string was buzzing against the fingerboard. I have done this on my bass guitar nut as well once and it worked quite well. I used baking soda instead of ebony filings for reinforcement to get the white plastic colour on the bass nut. Glue used is regular thin super glue. The gel kind won't work for this.

Here goes. Click the pictures to enlarge.

First I filed the surface lightly to prep for the glue.

1-4.jpgImage Enlarger



Then masked off the surrounding area. Best to contain the mess if it happens. Care should be taken to match the edge to the fingerboard to come out straight. Otherwise it might slightly alter string length.

2-3.jpgImage Enlarger



Propped the violin up so the are I was working on was mostly level so the glue wouldn't run down anywhere.

3-2.jpgImage Enlarger



Filed some ebony powder on a sheet of paper and put it on the prepped nut area. You want to have quite a generous amount of it since it does collapse a bit when the liquid glue is added. I only noticed later that the powder photo came out blurry :(

4-2.jpgImage Enlarger5-2.jpgImage Enlarger

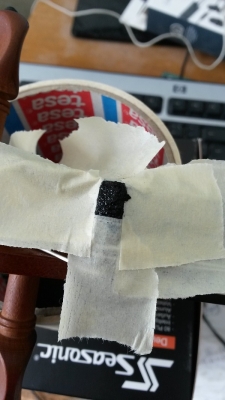

Dropped some super glue on top on it. You should avoid using so much glue that it completely covers the powder. A good amount is when the powder is wet but the texture still visible.

Minutes later I removed the masking tape. There is no strict time window here. Just wait until you feel it has dried enough to start working it. Best to wait longer than to try peeling the tape off too soon.

6-2.jpgImage Enlarger7-2.jpgImage Enlarger



And another shot with the tape removed.

8-2.jpgImage Enlarger

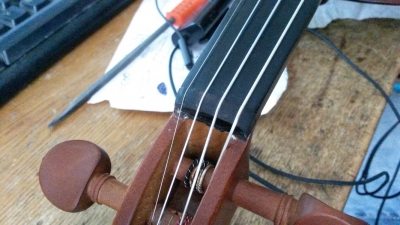

Now a shot with the glued part filed down to blend in and also the new groove filed in. Basically the finished thing.

9-2.jpgImage Enlarger



You do want to wait for a while longer to tune the instrument once the nut is done. The glue remains softish for a while. I don't remember how long I had it sitting but an hour or some should do.

So that's it. Hope someone finds it interesting. Also I hope the formatting of alternating text and pictures came out ok.

sp_PlupAttachments Attachments
Avatar
OldOgre
OhiO
August 5, 2016 - 6:09 pm
Member Since: March 15, 2014
Forum Posts: 244
sp_UserOfflineSmall Offline



great job .. thanks

With violins there is no fretting over the music.

Avatar
Fiddlerman
Fort Lauderdale
August 5, 2016 - 10:53 pm
Member Since: September 26, 2010
Forum Posts: 16537









This is a great technique though those who don't want to use Ebony powder can get away with black superglue in combination with Super Glue Accelerator.
One can also use titebond and Ebony powder.

"The richest person is not the one who has the most,
but the one who needs the least."

Avatar
MACJR

Honorary advisor
February 4, 2017 - 12:35 pm
Member Since: December 10, 2016
Forum Posts: 293
sp_UserOfflineSmall Offline

Cool find. I like reading posts from do-it-yourself people.

I have a nut with bad string slot spacing. I am planning to replace that nut, but I did want to know how it could be repaired. I do plan to keep the nut that gets replaced, so I could always fix it and use it again at another time.

MACJR

Avatar
Guido
Estonia

Member
February 4, 2017 - 4:40 pm
Member Since: November 9, 2015
Forum Posts: 19
sp_UserOfflineSmall Offline

BTW! If you are looking for material for making the new nut then I recommend buying the cheap fingerboards on ebay. They cost as much or less than what people ask for nut blanks and there's plenty of material there if you mess one up and need to start over.

Avatar
Guest
February 5, 2017 - 9:58 am

You have a great mind.  And thanks for the tip.

Avatar
zpilot
Kansas City, Mo.

Regular advisor
October 2, 2017 - 9:02 am
Member Since: September 29, 2017
Forum Posts: 100
sp_UserOfflineSmall Offline

As a guitar luthier when I have a slot that is too low I prefer to remove the nut and then reinstall it with a shim underneath to raise the offending slot to the correct height.  Then I recut the other slots to match.

Avatar
Fiddlerman
Fort Lauderdale
October 6, 2017 - 10:23 am
Member Since: September 26, 2010
Forum Posts: 16537









Good idea. And violin nuts are very easy to remove. Just a nice firm bang upwards towards the scroll and they pop right off. However, I won't take responsibility for any accidents when attempting this. :)
