Looking for a source for “rope” trim

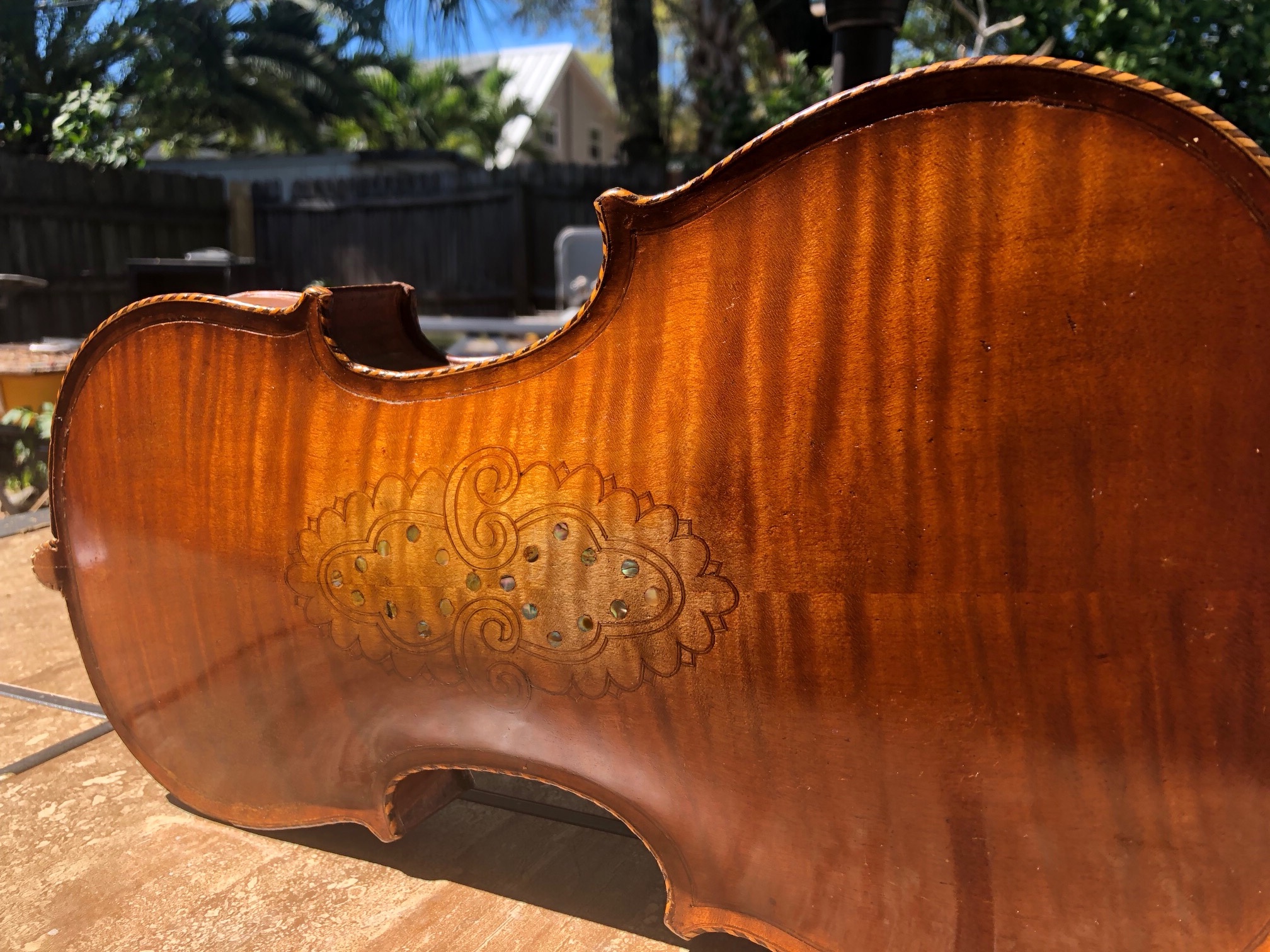

Picked up another mosaic
Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 Topic Rating: 0 (0 votes)
Avatar
steveduf
Members

Regulars
February 27, 2019 - 5:24 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline

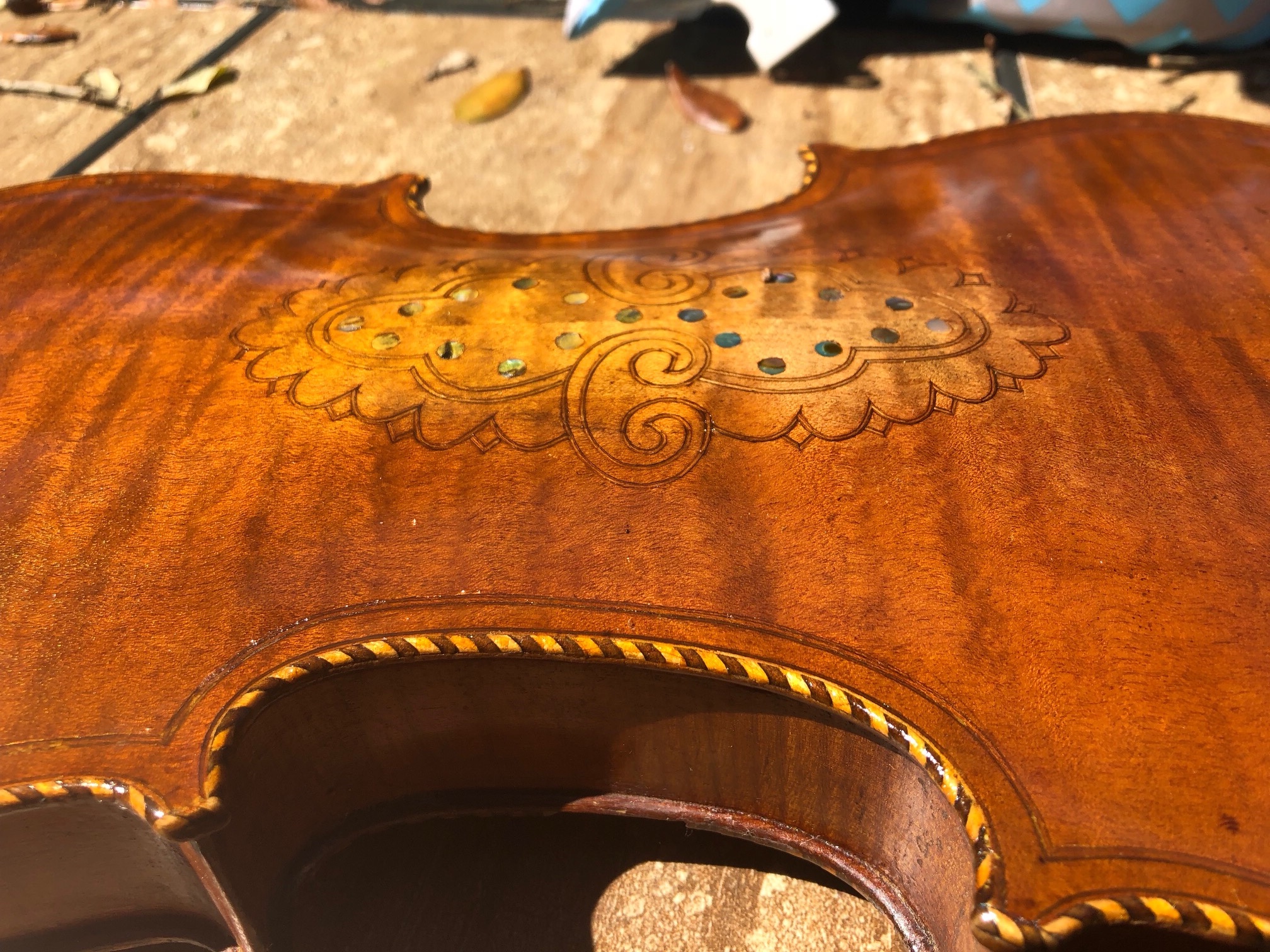

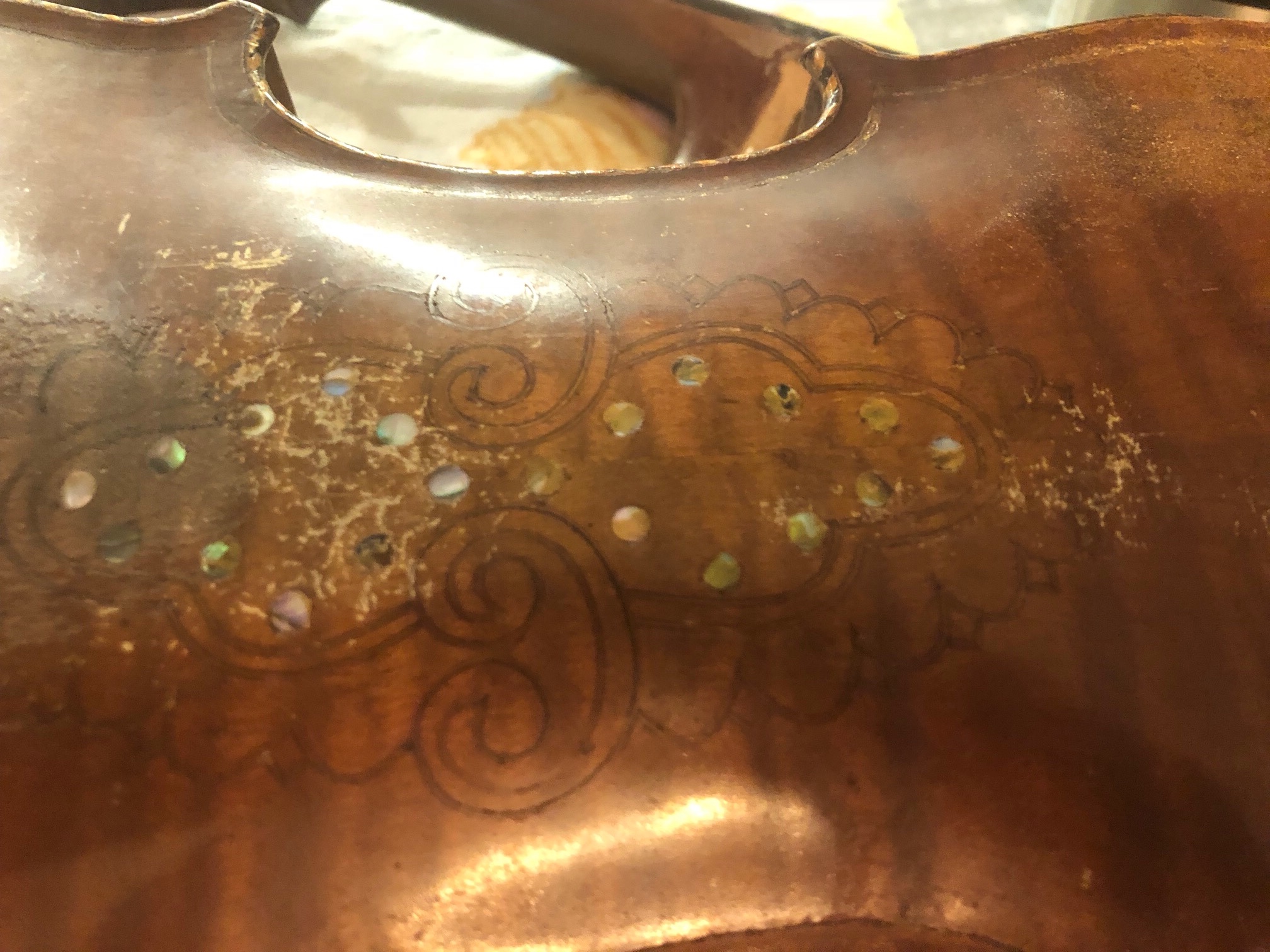

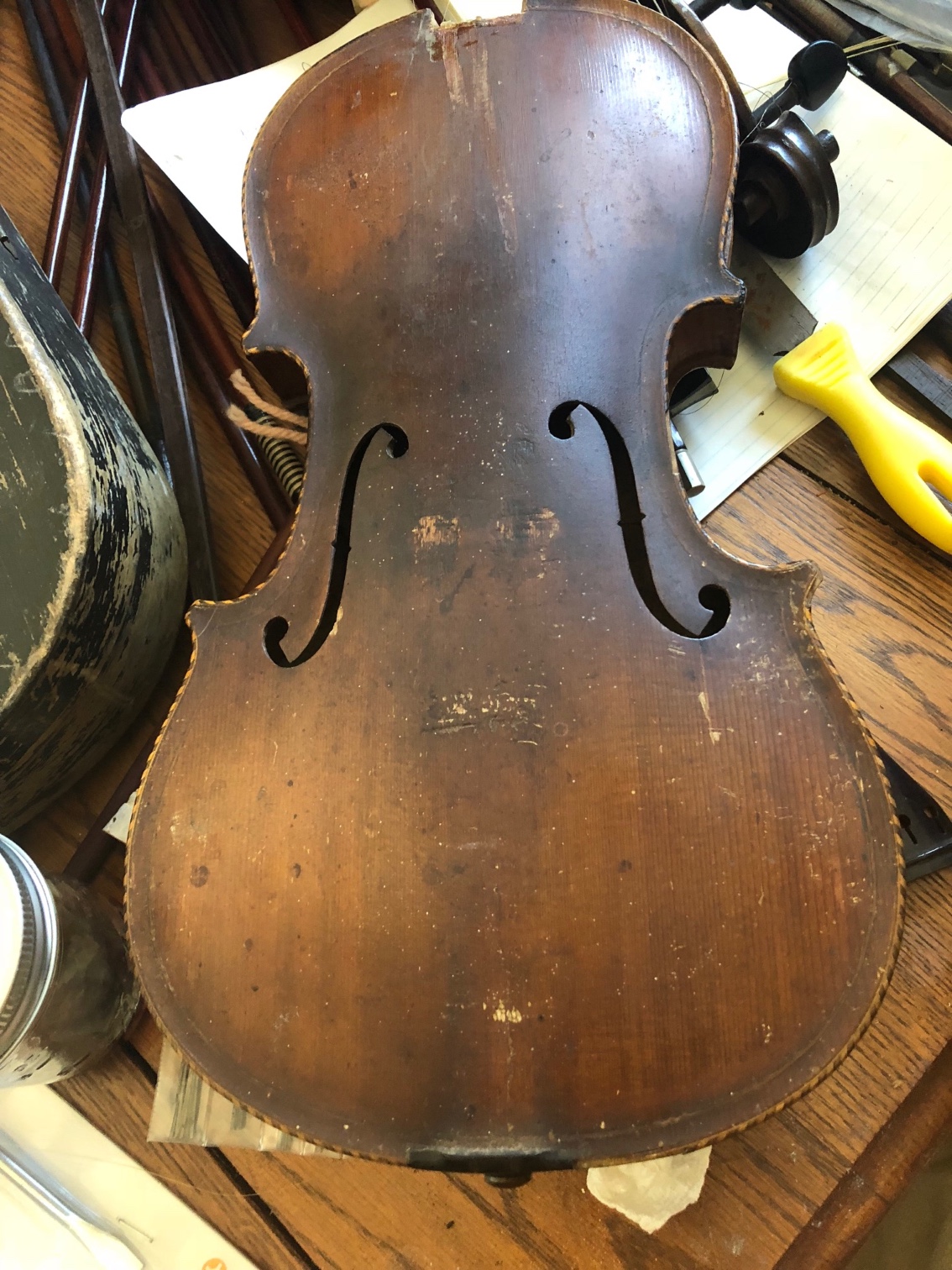

AA83BAEA-62F4-4947-954B-7EF049689566.jpegImage Enlarger9F42ADCD-B379-45D2-9962-E46F7AAB701D.jpegImage Enlarger1E466F57-72A4-47D8-A9EE-245D5410A68D.jpegImage Enlargerpicked up another mosaic project. Very nice looking border but is missing probably 5-6 inches of border.  Needs fingerboard and trim.  Neck is separated.  To make the trim by hand would be countless hours.  Still waiting on my new fingerboard to finish the last mosaic project.



@bocaholly , did you ever get your mosaic up and running?



this one is going on hold for awhile

Avatar
Irv
Members

Regulars
February 27, 2019 - 6:12 pm
Member Since: December 23, 2017
Forum Posts: 1130
sp_UserOfflineSmall Offline

Hi @steveduf and others.  What you are looking for is rope guitar binding.  Make sure you add guitar or you will be taken to odd corners of the Internet best left unexplored.  I would remove existing since getting a perfect match is beyond luck.  Gurian Instruments has a very attractive koa/maple/rosewood rope binding for $45/bundle.

Procedure to make your own binding are in American Luthier #45 and #100.  Also in “Classical Guitar Making” by Bogdanovich.

Research is what I’m doing when I don’t know what I’m doing.  —Werner von Braun

Without deviation from the norm, progress is not possible.         —Frank Zappa

Experience is a difficult teacher, it gives the test first and the lesson after.

Avatar
steveduf
Members

Regulars
February 27, 2019 - 6:23 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline

Thanks @Irv

That was too easy,  learned something new. Again.

I am thinking about salvaging from one side and fixing the other but I’m afraid the existing is loose somewhat everywhere.  Is the American luthier available online?

Avatar
Irv
Members

Regulars
February 27, 2019 - 6:30 pm
Member Since: December 23, 2017
Forum Posts: 1130
sp_UserOfflineSmall Offline

Easy for you.  I am searching the medicine cabinet for boric acid to rinse out my eyes.  You are on your own as to the Luthier magazine articles.

Take care in putting that stuff on a violin because all that glue will make it delicate.

Research is what I’m doing when I don’t know what I’m doing.  —Werner von Braun

Without deviation from the norm, progress is not possible.         —Frank Zappa

Experience is a difficult teacher, it gives the test first and the lesson after.

Avatar
steveduf
Members

Regulars
February 27, 2019 - 6:31 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline

And to the binding joke, lol

dozen years or so ago I made an end table from wood reclaimed from a beavers feed pile.  I wanted to etch a scene on a piece of glass for the top.  I searched “beaver pictures” ... I clicked on the first one tagged exotic pictures of beavers...

S.A.Y.   N.O.   M.O.R.E.

Avatar
bocaholly
Boca Raton, Florida
Members

Regulars
February 27, 2019 - 10:12 pm
Member Since: July 8, 2018
Forum Posts: 649
sp_UserOfflineSmall Offline

groan... and double groan... and here I am thinking I've been following a couple of talented inventors with engineering creds! Shocked... I'm shocked!

Avatar
bocaholly
Boca Raton, Florida
Members

Regulars
February 27, 2019 - 10:40 pm
Member Since: July 8, 2018
Forum Posts: 649
sp_UserOfflineSmall Offline

steveduf said9F42ADCD-B379-45D2-9962-E46F7AAB701D.jpegImage Enlarger

@bocaholly , did you ever get your mosaic up and running?

I did (or I should say, Felix at Fiddlershop did) and I owe you a report. Lovely job... and resulted in an interesting sound. I already mentioned that I installed the Knilling pegs myself. Felix did a top notch job on a new fingerboard, nut, bridge, sound post and selected a petit harp tailpiece which works nicely. Someone, at some point, had done a bogus repair job with epoxy on the ribs right around the saddle. Felix was able to make that mess nearly disappear.

The body is full sized, the neck seems to be the size of a 3/4 so in the end, I'm dealing with a 7/8 sized violin string length on a nice, svelt neck. Very player friendly with an action just high enough to keep the G string from buzzing.

I promise a comparative recording against my main Sima some time in the not too distant future

Avatar
steveduf
Members

Regulars
February 27, 2019 - 10:51 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline

@bocaholly

All I could think of is cutting hundreds of little pieces...

I have no engineering creds, but I’m a firm believer in the “necessity is the mother of invention” concept.

Avatar
Irv
Members

Regulars
February 27, 2019 - 11:17 pm
Member Since: December 23, 2017
Forum Posts: 1130
sp_UserOfflineSmall Offline

Well @bocaholly, everyone knows that engineers are kids that never grew up.  I bought loads of Radio Shack T Shirts when the company finally went out of business for $2 each.  I have a bi daily alternation with a Simpson “I dress myself” shirt so people will not reach the conclusion that I have worn the same shirt for five years running. 7F2958C2-5C7F-4C70-9835-8151AEA1CA76.jpeg

Research is what I’m doing when I don’t know what I’m doing.  —Werner von Braun

Without deviation from the norm, progress is not possible.         —Frank Zappa

Experience is a difficult teacher, it gives the test first and the lesson after.

Avatar
GregW
Members

Regulars
February 27, 2019 - 11:22 pm
Member Since: February 10, 2019
Forum Posts: 250
sp_UserOfflineSmall Offline
10sp_Permalink sp_Print
0

steveduf said
And to the binding joke, lol

dozen years or so ago I made an end table from wood reclaimed from a beavers feed pile.  I wanted to etch a scene on a piece of glass for the top.  I searched “beaver pictures” ... I clicked on the first one tagged exotic pictures of beavers...

S.A.Y.   N.O.   M.O.R.E.

Immediatley heard Lieslie Nielsen in Naked Gun movie.

Avatar
Irv
Members

Regulars
February 28, 2019 - 10:42 am
Member Since: December 23, 2017
Forum Posts: 1130
sp_UserOfflineSmall Offline
11sp_Permalink sp_Print
0

Hi @steveduf and others.   I have spent some time looking at videos.   If you have access to a table saw and perhaps a band saw, I think it possible to make your own binding.  I would get a thin kerf 8 inch diameter skill saw blade to waste the smallest amount of wood possible.

Select boards of species reflective of existing rope element colors (assume maple or birch for light and cherry or walnut for dark).  Rip to match height of existing binding.  Plane or sand top and bottom surfaces to finish dimension.  Dye to match existing binding.

Tilt table saw blade 45 degrees (or to match existing binding) and use veneer jig (easy to make) to produce rhombus ended sticks of about 4 inches in length.  Glue up alternating sticks (avoid gluing end surfaces) starting with a dark stick and ending with a light stick and compress between wax paper.  Cut to required width on table saw or band saw.  Extend length if necessary using glue.

Research is what I’m doing when I don’t know what I’m doing.  —Werner von Braun

Without deviation from the norm, progress is not possible.         —Frank Zappa

Experience is a difficult teacher, it gives the test first and the lesson after.

Avatar
steveduf
Members

Regulars
February 28, 2019 - 12:38 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline
12sp_Permalink sp_Print
0

@Irv

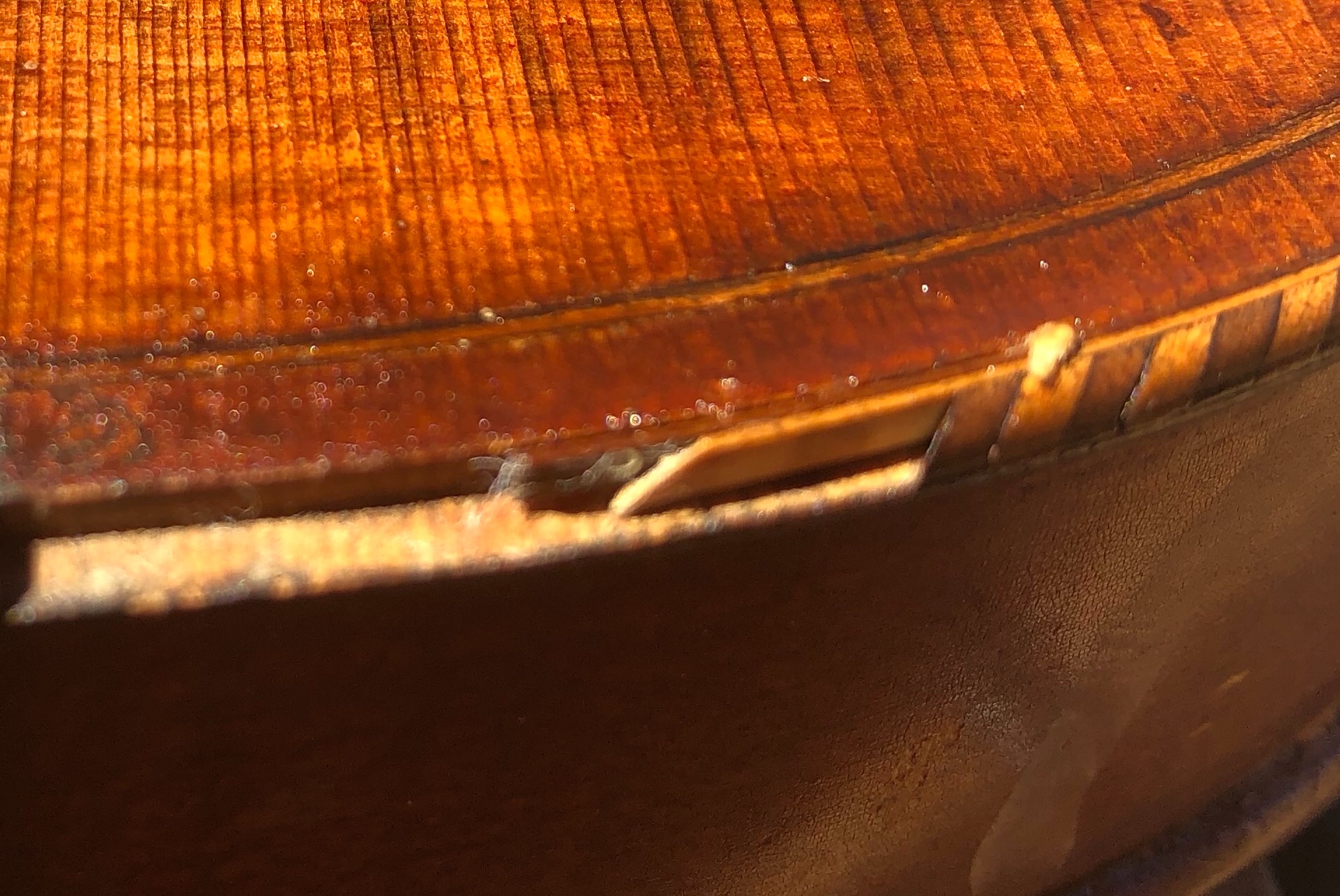

i have every kind of saw and planers and sanders, they are just too big for the minute pieces,  also I did a preliminary cleaning and  noticed there were two small layers of veneer against the top also.  I think I will cut all the small pieces with the small cross cut in a home made miter box and install it meticulously.1F995A26-DBCE-416F-A386-F7D0EBA991C0.jpegImage Enlarger

Avatar
steveduf
Members

Regulars
February 28, 2019 - 12:42 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline
Avatar
Irv
Members

Regulars
February 28, 2019 - 1:11 pm
Member Since: December 23, 2017
Forum Posts: 1130
sp_UserOfflineSmall Offline

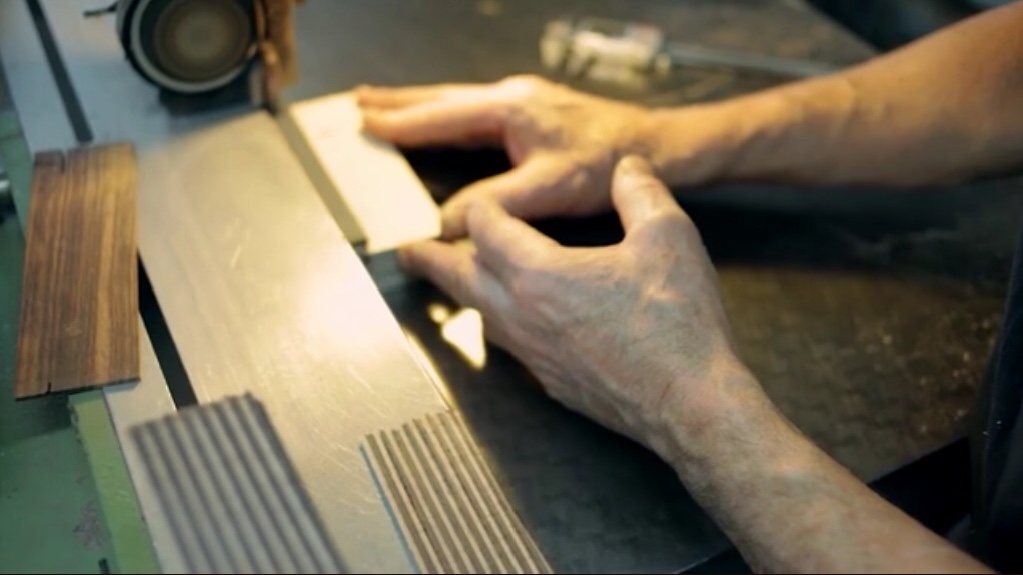

The binding is likely 3/16" to 1/4" high.  It should be easy to achieve that dimension on a table saw.  You will need a zero clearance table insert5398EF73-ED24-4EA8-871F-8D20BB16842A.jpegImage Enlarger for saw table (I make mine out of cedar) so that the tooth pick sized rope segments will not be lost.  Do not think of tiny segments.  Think of alternating wood colored rhombus blocks cut into binding strips after glue up.  Commercial operations use standard sized equipment so you should be able to duplicate their efforts.

Research is what I’m doing when I don’t know what I’m doing.  —Werner von Braun

Without deviation from the norm, progress is not possible.         —Frank Zappa

Experience is a difficult teacher, it gives the test first and the lesson after.

Avatar
steveduf
Members

Regulars
February 28, 2019 - 1:22 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline
15sp_Permalink sp_Print
0

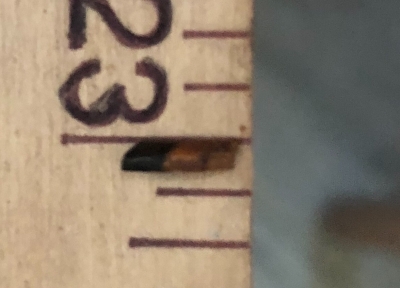

Here’s a pic of the width and height of two segments, about 1/16 the one way8F008E05-20D4-41D7-ADEC-0C10E50A866E.jpegImage Enlarger06EE6B1E-5EAC-47BA-8827-02B01FBE1F52.jpegImage Enlarger

Avatar
steveduf
Members

Regulars
February 28, 2019 - 1:25 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline
16sp_Permalink sp_Print
0

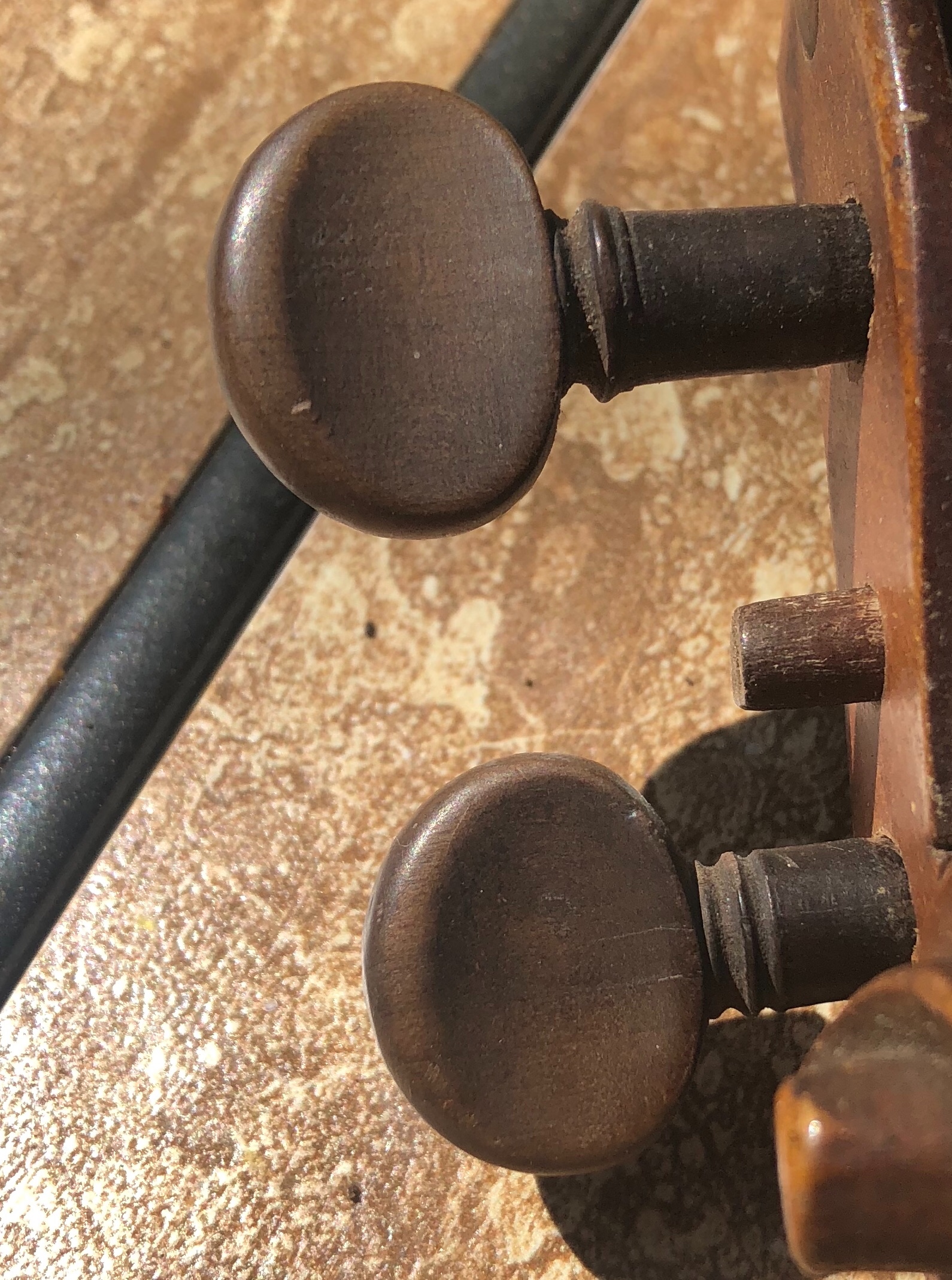

This violin also has a laminated fingerboard and walnut colored pegs.  Going to order a new set of fittings also CA1A9164-A342-4279-B441-96EE040EDF3E.jpegImage Enlarger53A00B3A-9A06-46DE-B3E5-16F429EA3980.jpegImage Enlarger

Avatar
Irv
Members

Regulars
February 28, 2019 - 2:32 pm
Member Since: December 23, 2017
Forum Posts: 1130
sp_UserOfflineSmall Offline
17sp_Permalink sp_Print
0

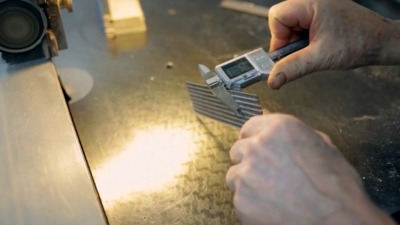

Another photo.  I still think it could be done.5DB60068-C02B-4D8A-8338-296A71E9F4F1.jpegImage Enlarger

Research is what I’m doing when I don’t know what I’m doing.  —Werner von Braun

Without deviation from the norm, progress is not possible.         —Frank Zappa

Experience is a difficult teacher, it gives the test first and the lesson after.

Avatar
steveduf
Members

Regulars
February 28, 2019 - 2:55 pm
Member Since: March 26, 2018
Forum Posts: 326
sp_UserOfflineSmall Offline
18sp_Permalink sp_Print
0

 I think it can be done also, by the way I like that picture, but I think I need to fabricate95CACA9F-3AC1-4173-A7F4-B99EC3AC1072.jpegImage Enlarger a mini table saw and use one of these 2 inch blades on either my Foredom or a Dremel with a variable speed pedal

Avatar
Irv
Members

Regulars
February 28, 2019 - 3:17 pm
Member Since: December 23, 2017
Forum Posts: 1130
sp_UserOfflineSmall Offline
19sp_Permalink sp_Print
0

You might want to look at Harbor Freight item #61608.  Provided 4 inch saw blade is useless, but a suitable carbide tipped blade is inexpensive.  Once veneer is created, slicing “tooth picks” can also be accomplished with a fret saw if angle can be established with a guide block.  You might also look at making a planing guide similar to that used in making split bamboo fly rods.  We can do this without you going blind in the process.C689B3CC-FCC9-47A8-99CE-520CB51B6573.jpegImage Enlarger

Research is what I’m doing when I don’t know what I’m doing.  —Werner von Braun

Without deviation from the norm, progress is not possible.         —Frank Zappa

Experience is a difficult teacher, it gives the test first and the lesson after.

Avatar
Fiddlerman
Fort Lauderdale
February 28, 2019 - 5:10 pm
Member Since: September 26, 2010
Forum Posts: 14466
20sp_Permalink sp_Print
0

bocaholly said

I already mentioned that I installed the Knilling pegs myself.

You get a DIY badge. Yeeeee Haaaaaa!!!!!dancing
