Top off fer repairs
Pre WW1 German Strad
Topic Rating: 5 Topic Rating: 5 Topic Rating: 5 Topic Rating: 5 Topic Rating: 5 Topic Rating: 5 (5 votes)
Avatar
Tucson1

Honorary advisor
Members

Regulars
October 4, 2014 - 9:45 pm
Member Since: September 19, 2013
Forum Posts: 234
sp_UserOfflineSmall Offline

Howdy y'all ,

Been keepin' an eye on the edges of the top and bottom fer a year now as the lip at the tail piece button seemed to be smaller on one side than the other with slight gaping.

So , with this years monsoon season now there is a center seam seperation under the tail piece ...should have made repairs sooner maybe ....? a stich in time saves nine ...

This puppy has a big bass bar ...ya hoo ...have inclueded a top from another with a smaller bass bar for comparison ....violin-1267Note that the end block at the tail will need to be re-set inboard on the treble side as well as cleating the seam seperarationIMG_2622.JPGImage Enlarger

 IMG_2618.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
suresh
Tuticorin, India

Honorary advisor
Members

Regulars
October 5, 2014 - 12:10 am
Member Since: August 22, 2011
Forum Posts: 485
sp_UserOfflineSmall Offline

Nice pic.



P.S.  I gave this post a 5 star.  We should have some system to know who has rated a particular post.  If there is a system, then I am not aware of it.

If music be the food of love, play on;
Give me excess of it ..(William Shakespeare in Twelfth Night)

Avatar
coolpinkone
California, the place of my heart
October 5, 2014 - 1:16 am
Member Since: January 11, 2012
Forum Posts: 4180
sp_UserOfflineSmall Offline

For me that is a great pic.. and I am happy to see it.  I don't see the insides of violins.   Very cool.  Tucs... that is so very very cool.

I will give it five stars also.  1. because I was looking so forward to seeing it. 2. because I so envious of what  you can do.

Does anyone pay attention to the stars? If so, I think it would be fine to reveal the raters of the stars. Something tells me forum-wise it might not be so peaceful?

For me personally I have never looked to see a rating on a post to determine my feeling on it. Nor  have I ever looked to see if someone rated my own post.

Vibrato Desperato.... Desperately seeking vibrato

Avatar
Tucson1

Honorary advisor
Members

Regulars
October 5, 2014 - 2:14 am
Member Since: September 19, 2013
Forum Posts: 234
sp_UserOfflineSmall Offline

Wow , thanks fer yer interest    .... so here's a close up of the rib displacement due to end block movement over time ...where the robot's right antenna is pointing ...and fer Toni , a fine , violinist proffesional hand model pointing to the inside movement area ..jk

violin-1267I'm including inside /outside shots so y'all can see what's goin' on inside when the outside is all that can be seen ....it was possible to fix this condition with the top still on ....maybe avoiding the center seam issue all together if done early enough

also , all seam seperations , cracks , etc do not nessasarily have to be cleated as well ...proper cleaning of the area to be repaired is most important ...IMG_2626.JPGImage Enlarger

 IMG_2624.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
coolpinkone
California, the place of my heart
October 7, 2014 - 4:57 pm
Member Since: January 11, 2012
Forum Posts: 4180
sp_UserOfflineSmall Offline

It is just amazing how lifeless a violin seems with the top off.  Makes me groan a bit.

:)  oh yes ... . Tucs.. indeed "the hand of a fine violinist"  thumbs-up and a darn good Luthier too.

Vibrato Desperato.... Desperately seeking vibrato

Avatar
suresh
Tuticorin, India

Honorary advisor
Members

Regulars
October 11, 2014 - 12:54 pm
Member Since: August 22, 2011
Forum Posts: 485
sp_UserOfflineSmall Offline

coolpinkone said
For me that is a great pic.. and I am happy to see it.  I don't see the insides of violins.   Very cool.  Tucs... that is so very very cool.

I will give it five stars also.  1. because I was looking so forward to seeing it. 2. because I so envious of what  you can do.

Does anyone pay attention to the stars? If so, I think it would be fine to reveal the raters of the stars. Something tells me forum-wise it might not be so peaceful?

For me personally I have never looked to see a rating on a post to determine my feeling on it. Nor  have I ever looked to see if someone rated my own post.

I too agree with Toni that something is not alright with the rating system.  Some(body/persons playing havoc with it.

If music be the food of love, play on;
Give me excess of it ..(William Shakespeare in Twelfth Night)

Avatar
Fiddlerman
Fort Lauderdale
October 12, 2014 - 10:14 am
Member Since: September 26, 2010
Forum Posts: 16435

Please everyone. More opinions on the rating system. I'm here for you and only want what is fun and positive. If the rating system is a problem, it's very easy to remove. :)
I had a few PM's to start this kind of system to bring attention to the higher rated posts, kind of like what you do when shopping at amazon or looking for a good move, but if members use the system to discredit a members value, then I too believe it should be abolished. After it was first implemented I received positive PM's about it.

"The richest person is not the one who has the most,
but the one who needs the least."

Avatar
DanielB
Regulars

Members
October 12, 2014 - 11:39 am
Member Since: May 4, 2012
Forum Posts: 2379
sp_UserOfflineSmall Offline

I don't think of the rating system as being all that important.. But it is kinda nice for being able to throw some stars on something you agree with, but maybe don't have much you can think of to add to.

I am not understanding how havoc can be played with it, since any vote on it is strictly positive.  It's not like someone can vote negatively, so far as I know?  And (again, so far as I know) it does not affect a poster's standing in tot community or where or how the post is displayed at all?

I think it is better than if we had, for example "like" and "dislike" buttons as many places do.  If someone posts something and gets a lot of "dislike" votes, that could be very discouraging and could be used as a form of "attack" by a group of people on an individual.

But the system we have here with the stars.. Well, if you gave it 5 stars you thought it was great.  If you give it one star you at least read it and acknowledged there was enough to it that you liked it a little, for some reason.  To my way of thinking that is all positive.  Liked it a little, liked it a lot, it is all still liking.

A lot of excellent posts and threads get no stars at all.  It doesn't mean they were bad, just nobody thought or remembered to vote on them.  I don't think that is a bad thing, just an indicator that most folks here consider the actual replies and their content as far more important.  The stars are just a supplemental way one can use sometimes (if one remembers) to react to a post.

Maybe I am missing something on how havoc is being played with the system, though?

"This young wine may have a lot of tannins now, but in 5 or 10 years it is going to be spectacular, despite the fact that right now it tastes like crude oil. You know this is how it is supposed to taste at this stage of development." ~ Itzhak Perlman

Avatar
Tucson1

Honorary advisor
Members

Regulars
October 12, 2014 - 2:32 pm
Member Since: September 19, 2013
Forum Posts: 234
sp_UserOfflineSmall Offline

Pierre,

I don't even look at the stars much less use them ...never really think about them ...sleep

Avatar
VickieD
Members

Regulars
October 12, 2014 - 3:31 pm
Member Since: July 26, 2014
Forum Posts: 130
sp_UserOfflineSmall Offline
10sp_Permalink sp_Print
0

Tucson1 - interesting pics of the fiddle without the top.

As far as the post rating system goes - I don't pay much attention to the stars or use them but if others find the system useful I don't see any harm in it.

"A table, a chair, a bowl of fruit and a violin; what else does a man need to be happy?
~~Albert Einstein

Avatar
Joe_Average

Member
Members
October 14, 2014 - 7:06 pm
Member Since: September 17, 2014
Forum Posts: 36
sp_UserOfflineSmall Offline
11sp_Permalink sp_Print
0

So in order to bring the ribs and block back onto the right spots are you going to have to completely remove the ribs from the back or ?

I'm fascinated by this thread, I'm looking forward to building my own violin one day.

Avatar
Tucson1

Honorary advisor
Members

Regulars
October 14, 2014 - 11:10 pm
Member Since: September 19, 2013
Forum Posts: 234
sp_UserOfflineSmall Offline

Hey Joe ,

That's a good question and the answer in this case is   no , i can take the treble rib loose from the block and back to just before the area the rib needs to be in ...

also taking the bass rib loose from the back as well ...but leaving it on the end block .

Then clean off old glue , put the end block back on the bottom and reglue bringing the bass rib with it ....glue and clamp overnite ...

Next day , re fit the treble rib to back and end block , glue and clamp over nite ....

I will post pics when i do the repairs fer clarity but this should give ya an idea of how it goes ...no rush , just takes time to do a good job ...

Sorry , but i need some repair myself right now but will get back on this soon as i can It's easy enough to do this kind of work if ya take yer time ...

This is my favorite old fiddle.Lookin' forward to playing it again ....thanks fer yer interest ...violin-1267IMG_2639.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Tucson1

Honorary advisor
Members

Regulars
October 18, 2014 - 11:06 pm
Member Since: September 19, 2013
Forum Posts: 234
sp_UserOfflineSmall Offline

hey , hey , ...

here's a close up of the end block that has moved outward on the treble side ...looks like a bit of a crack there maybe ...guess it will have to come out for a closer look bunny-headbangviolin-1267and , welp , here it is ...so i marked where the cracks are ...time to make and fit a new block fer sure ....when this happens the ribs can become streached and distorted over time requiring a bit of end trimming to but-fit back together again cleanly ...judging from the time staining on the bass rib behind the block , the block was not a good fit on that side originaly ...

not a biggie to do , just takes time ...goes ta show that what at first glance can seam minor can get more involved as ya look closer ...i have found them in this age with cracks in both end blocks ...so happy to say only one this time...IMG_2641.JPGImage Enlarger



IMG_2640.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Tucson1

Honorary advisor
Members

Regulars
October 19, 2014 - 6:54 am
Member Since: September 19, 2013
Forum Posts: 234
sp_UserOfflineSmall Offline

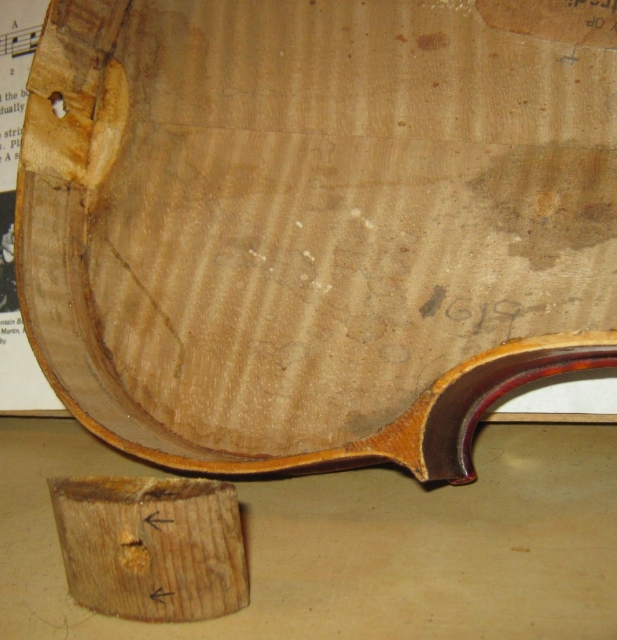

soooo, now that all areas in need of repair have been identified and the broken end block removed , i'll start a new thread fer repairing and putting back together ...stay tuned fer more fun ..violin-1267that is ...if you like this sort of thing ...bunny-headbang

Avatar
Fiddlerman
Fort Lauderdale
October 21, 2014 - 7:38 am
Member Since: September 26, 2010
Forum Posts: 16435
15sp_Permalink sp_Print
0

I think I can speak for most of us and say that we love this sort of thing. :)
Thanks for the posts Tucson1.

"The richest person is not the one who has the most,
but the one who needs the least."

Avatar
Joe_Average

Member
Members
October 21, 2014 - 6:06 pm
Member Since: September 17, 2014
Forum Posts: 36
sp_UserOfflineSmall Offline
16sp_Permalink sp_Print
0

That's really awesome that you've got the know-how to do that on a fiddle. I'm thinking I'll start by getting a fiddle 'in the white' and copying it out in the garage.

Now when you remove the glue are you doing it with a heat gun or a hot knife or what?

I have a fiddle that the end button is starting to slide upward, it would seem that the fix for that would be plugging and re-drilling the hole at the proper angle, is that correct?

And thank you for showing us your fiddle project here, it's definitely must-watch for me :D

Avatar
Tucson1

Honorary advisor
Members

Regulars
October 21, 2014 - 11:11 pm
Member Since: September 19, 2013
Forum Posts: 234
sp_UserOfflineSmall Offline

Hey Joe ,

Think i'd get a book on how to build a violin and watch some vids ...in the white is a good idea as well ...ya can check the top and bottom graduation etc , practice finishing and gluing ....

you'll see lots of vids on gluing / removing glue , etc ..use the one that suits you the best ...i use an eye dropper with alcohol a long a seam and two  artists pallet knifes to remove the top ...no heat needed ...if you get alcohol on the finish where ya don't want it just remove with a swipe of yer finger ...if the varnish blushes it will polish back nicely .but that's just the way i do it ...some folks would have kittens if they got alcohol on their finish but i have had no problem with it myself

But this is if yer fiddle was made with hide glue ...if it's a newer violin it may be modern glue which will require a hot pallet knife ...no alcohol ...



Find a vid fer yer end buttom fix but yes , plug and re drill , then use a taper reamer to re fit yer peg ...taper should be 1:30 if a newer violin

violin-1267
